UNC Threads (Unified Coarse)

Thread Characteristics:

UNC threads have a coarser pitch, meaning fewer threads per inch (TPI). This larger spacing results in a tough thread that is less prone to cross-threading or stripping.

 Applications:

General-purpose fasteners are routinely used in UNC threads, which are effective in situations where a quick assembly and disassembly are important. They are particularly suitable for soft materials such as aluminum and plastics, while the coarse thread profile gives rise to increased compression in the material.

UNF Threads (Unified Fine)

Thread Characteristics:

 UNF threads have a finer pitch, which means greater threads per inch. This allows for greater engagement and provides better resistance to loosening with vibration.

Both UNC and UNF are important thread systems, so it is important to know when and how to use each.

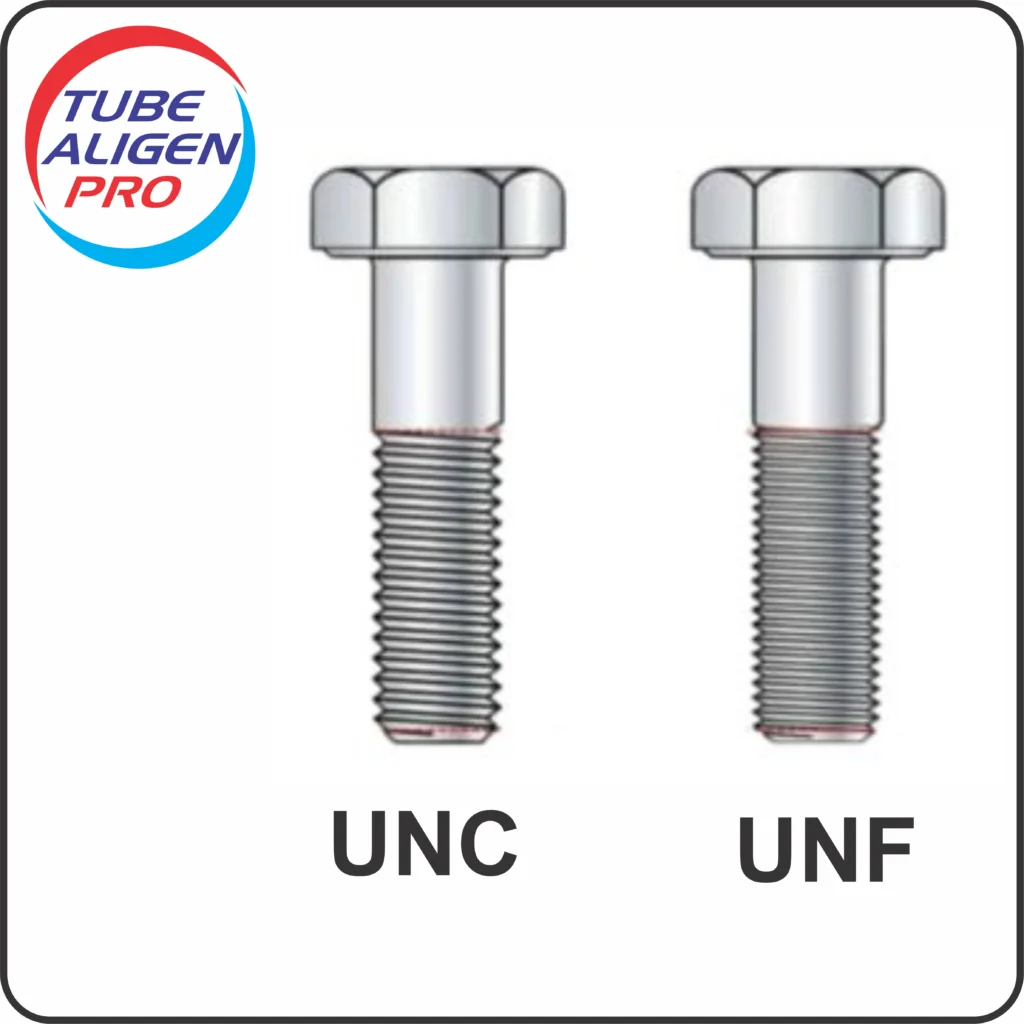

Key Differences Between UNC and UNF Threads

1. Thread Pitch (TPI)

The fundamental difference lies in the pitch. UNC threads are spaced further apart, offering a coarser profile, while UNF threads are closer together, creating a finer profile. For example, a 1/4″-20 UNC screw has 20 threads per inch, whereas a 1/4″-28 UNF screw has 28 threads per inch.

2. Strength and Load Distribution

• UNC Threads provide greater pulling strength and better load distribution in softer materials.
• UNF Threads excel in high-strength applications, allowing for better torque and reduced likelihood of thread loosening due to vibration.

3. Ease of Assembly

The coarse profile of UNC threads makes them less prone to operational errors like cross-threading, especially in environments where quick assembly and disassembly are required.

4. Sizing and Compatibility

When fasteners with UNC threads are slightly larger in overall diameter compared to their UNF counterparts of the same nominal size. This can influence compatibility and fit with threaded holes.

By understanding these differences, you can select the right threading system for your tasks and avoid costly errors.

Using a Thread Chart Effectively

A thread chart guide is an indispensable tool for machinists, engineers, and hobbyists working with threaded fasteners. Here’s how you can use it effectively:

Step 1. Understand the Chart Layout

Most thread charts are organized by the fastener’s nominal diameter followed by the thread pitch (TPI). Charts typically include additional columns for drill sizes, tap sizes, and tolerances.

Step 2. Match Your Fastener to the Chart

Identify the nominal diameter and thread pitch of your bolt or screw. For instance, if you’re working with a UNC bolt labeled 3/8″-16, it has a diameter of 3/8 inch and 16 threads per inch.

Step 3. Choose the Correct Tap or Die

The chart will reveal the appropriate tap size for internal threads or die size for external threads. This is critical to ensuring a perfect fit between your fastener and the mating component.

Step 4. Double-Check Pilot Hole Sizes

Drill the correct pilot hole size as indicated by the chart. Using the wrong drill size can strip threads or compromise the fastener’s grip.

Step 5. Measure Threads with Gauges

If you are not sure what the thread specifications of a fastener are, it can take a long time to measure the pitch of the fastener with a thread gauge and to reference it against the chart.

If you go through the proper steps to make sure your threads are aligned, properly fitted, and structurally sound, then you should not have too much trouble!

Common Mistakes to Avoid When Working with Threads

Mistakes in threading can lead to frustration and wasted resources. Here are a few pitfalls to watch out for:

1. Using the Wrong Thread Type

Mixing UNC bolts with UNF nuts (or vice versa) is a common issue. Since their pitches don’t match, it can lead to insecure fastening or stripped threads.

2. Over-Tightening Fasteners

Applying too much torque can damage the threads, even with the correct pairing. Use a torque wrench where possible to ensure you don’t exceed the recommended torque values.

3. Skipping the Thread Chart

Eyeballing screws and fasteners instead of consulting the thread chart is a recipe for error. Always use the chart to confirm sizing and compatibility before proceeding.

4. Ignoring Material Properties

Selecting the wrong threading system for your material can lead to failures. For instance, using UNF threads in soft materials like aluminum may result in stripped threads due to an insufficient engagement area.

Avoiding these mistakes will make your threading operations more accurate and reliable.

Resources for Thread Tools and Calculations

We’ve covered the essentials, but creating a well-rounded thread toolbox is equally important. Check out these resources to enhance your projects:

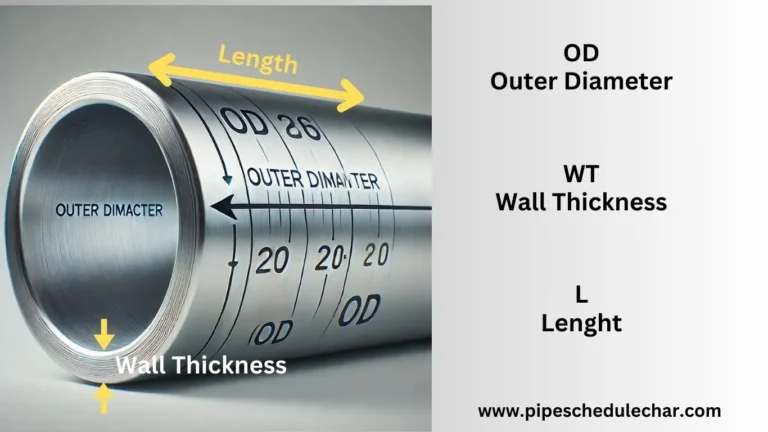

• Pipe Wall Thickness
